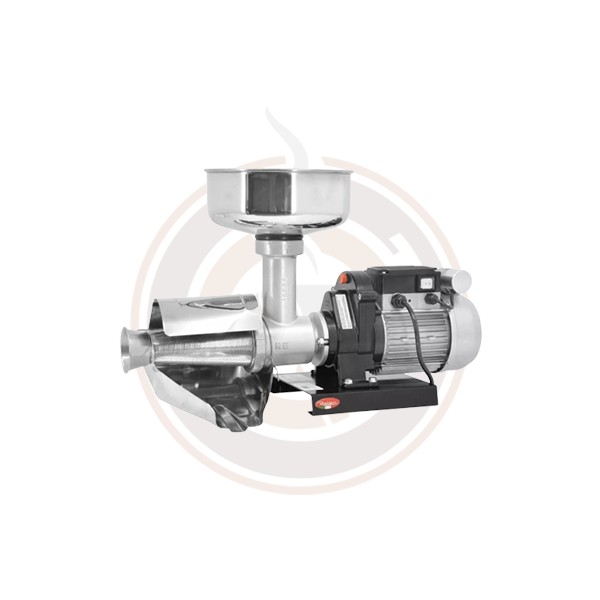

These models enable the extraction of large quantities of tomato puree, separating it from seeds and skin. The filter cone, funnel and drip pan are entirely made of 18/10 stainless steel.

Features:

• Suitable for tomato sauce, jams, fruit juice
• Propeller in acetal resin which is suitable for food contact and antifriction
• Filter cone, drip pan, anti-spray guard and big capacity funnel are entirely built in stainless steel AISI 304
• Towing pin in steel and nylon 6.6
• Body in cast iron treated for food use with epoxy powder baked at 300C
• The oil used is “Long Life” and suitable for occasional food contact; it doesn”t need any replenishing or replacement
• Axial reduction unit with oil-bath metal gears (nylon 6.6 gears are used for art. 18901)
• Protection class IPX5
• Cooling fan, fan cover and tight switch condenser box are made in plastic material (fan cover in stainless steel for art. 18903)
• Continuous duty, electric induction motors


Technical Specifications:

• POWER: 0.80 HP / 0.60 kW
• WORM RPM: 110
• ELECTRICAL: 115V / 60Hz / 1Ph
• DIMENSIONS: 21L X 12W X 14H
• WEIGHT: 45 lbs.
